Integration testing for Pulumi programs with LocalStack & Automation API

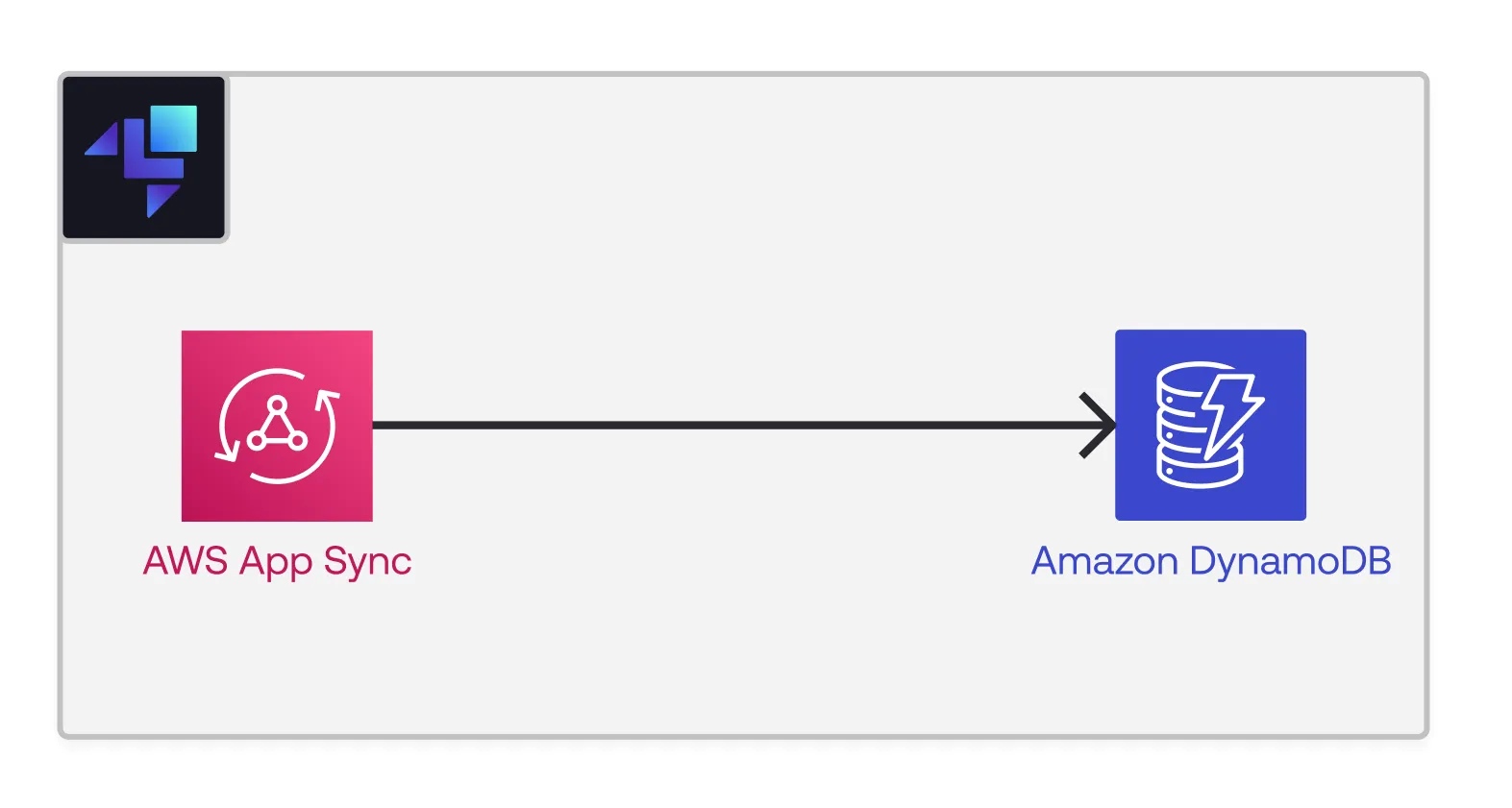

Testing a AppSync API to DynamoDB workflow

Testing your cloud infrastructure should not feel like summoning a storm deity—you press deploy, cross your fingers, and hope your AWS bill doesn’t strike you down. 😭 ⚡ 🌩️

Pulumi makes Infrastructure as Code (IaC) testing easier by offering different approaches, from fast unit tests (mocking resources) to full integration tests that spin up real infrastructure.

One of Pulumi’s superpowers is the Automation API, which lets you deploy and manage stacks programmatically—no CLI wizardry needed! 🧙

But here’s the problem: running tests in the actual cloud can be painfully slow and expensive. Spinning up resources? Costly. Tearing them down? Time-consuming. Debugging live environments? An exercise in masochism.

That’s why we think LocalStack is cool! A local AWS emulator that lets Pulumi interact with a cloud-like environment without actually deploying to AWS.

In this guide, we’ll show you how to:

1. Set up Pulumi integration testing using LocalStack + Automation API
2. Deploy a AppSync API with DynamoDB entirely locally
3. Automate test execution to verify everything works

Let’s dive right in, shall we? 🌊

Table of contents

• How LocalStack works with Pulumi
• Prerequisites
• Step 1: Spin up a Pulumi project
• Step 2: Structure the Pulumi project
• Step 3: Deploy Pulumi stack
• Step 4: Setup Pulumi integration tests
• Step 5: Run Pulumi integration tests
• Summary
• What to try next

How LocalStack works with Pulumi

LocalStack runs AWS services locally, so Pulumi treats it like the real cloud—minus the cloud. When Pulumi deploys S3 buckets, Lambda functions, or ECS tasks, they go to LocalStack instead of AWS.

Two Ways to Connect Pulumi to LocalStack

Option 1: Use pulumilocal

You can use pulumilocal, a wrapper around the Pulumi CLI that auto-configures endpoints for LocalStack.

pip install pulumi-local
pulumilocal version

Option 2: Configure Pulumi Manually

You can configure AWS service endpoints in Pulumi.localstack.yaml so that Pulumi will communicate with LocalStack instead of AWS.

config:
  aws:accessKey: test
  aws:endpoints:
    - s3: http://localhost:4566
    - dynamodb: http://localhost:4566
  aws:region: us-east-1
  aws:secretKey: test
  aws:skipCredentialsValidation: "true"

Prerequisites

• localstack CLI with LocalStack Auth Token
• Pulumi
• Docker
• Python & pip

Step 1: Spin up a Pulumi project

First, create a new Pulumi project with the aws-python template.

This template includes all the boilerplate code you need.

1.1: Set up project

mkdir -p appsync-dynamodb
export PULUMI_CONFIG_PASSPHRASE=lsdevtest
export PULUMI_ACCESS_TOKEN=lsdevtest
export PULUMI_BACKEND_URL=file://$(PWD)/appsync-dynamodb

Next, initialize Pulumi:

pulumi new aws-python --cwd appsync-dynamodb -y -s localstack

This creates your project inside appsync-dynamodb, using localstack as the stack name.

1.2 Peek inside new project

❯ cd appsync-dynamodb
❯ tree -L 1
.
├── Pulumi.localstack.yaml
├── Pulumi.yaml
├── __main__.py
├── requirements.txt
└── venv

Now, create resource_appsync.py because it’s time to define some AWS resources with Pulumi.

Step 2: Structure the Pulumi project

We’ll split our logic across two files:

• __main__.py → The entry point, imports and calls the API setup.
• resource_appsync.py → Defines the AppSync API and DynamoDB integration.

2.1: Define the imports

Open resource_appsync.py and import the necessary libraries.

import json
import pulumi
from pulumi import Output
import random
import string
from pulumi_aws import appsync, dynamodb, iam

2.2: Define the constants

These will be used to export the API details after deployment.

OUTPUT_KEY_ENDPOINT = "endpoint"
OUTPUT_KEY_API_KEY = "api_key"
OUTPUT_KEY_API_ID = "api_id"

2.3: Create the function

This function will contain all the logic for creating the AppSync API and DynamoDB table. All the code below will go inside this function.

def create_appsync_api():
    ...

2.4: Define the DynamoDB table (╯°□°)╯︵ ┻━┻

This will store our tenant data.

table = dynamodb.Table(
    "tenants",
    hash_key="id",
    attributes=[dynamodb.TableAttributeArgs(name="id", type="S")],
    read_capacity=1,
    write_capacity=1,
)

2.5: Set up IAM Permissions

• AppSync needs an IAM role to interact with DynamoDB.
• We give it only the permissions it needs.

# Create an IAM role that AppSync can assume
role = iam.Role(
    "iam-role",
    assume_role_policy=json.dumps({
        "Version": "2012-10-17",
        "Statement": [{"Action": "sts:AssumeRole", "Principal": {"Service": "appsync.amazonaws.com"}, "Effect": "Allow"}]
    })
)

# Define a policy that allows specific DynamoDB actions
policy = iam.Policy(
    "iam-policy",
    policy=Output.json_dumps({
        "Version": "2012-10-17",
        "Statement": [{"Action": ["dynamodb:PutItem", "dynamodb:GetItem"], "Effect": "Allow", "Resource": [table.arn]}]
    })
)

# Attach the policy to the role
iam.RolePolicyAttachment("iam-policy-attachment", role=role.name, policy_arn=policy.arn)

👆 Boom! AppSync can now read & write from DynamoDB.

2.6: Define the GraphQL schema

This schema defines a simple Tenant type with ID and name fields, along with queries and mutations for retrieving and adding tenants.

schema = """
    type Query {
        getTenantById(id: ID!): Tenant
    }
    type Mutation {
        addTenant(id: ID!, name: String!): Tenant!
    }
    type Tenant {
        id: ID!
        name: String
    }
    schema {
        query: Query
        mutation: Mutation
    }
"""

2.7: Create the AppSync API

This sets up a AppSync API with API Key authentication.

api = appsync.GraphQLApi("key", authentication_type="API_KEY", schema=schema)
api_key = appsync.ApiKey("key", api_id=api.id)

2.8: Connect the API to DynamoDB

This creates a data source that connects the AppSync API to the DynamoDB table.

random_datasource_name = "".join(random.choice(string.ascii_letters) for _ in range(15))

data_source = appsync.DataSource(
    "tenants-ds",
    name=random_datasource_name,
    api_id=api.id,
    type="AMAZON_DYNAMODB",
    dynamodb_config=appsync.DataSourceDynamodbConfigArgs(table_name=table.name),
    service_role_arn=role.arn,
)

🤔 Why the random name? AWS hates duplicate names, so we generate one on the fly.

2.9: Define GraphQL resolvers

Resolvers connect GraphQL queries to DynamoDB operations.

appsync.Resolver(
    "get-resolver",
    api_id=api.id,
    data_source=data_source.name,
    type="Query",
    field="getTenantById",
    request_template="""{"version": "2017-02-28", "operation": "GetItem", "key": {"id": $util.dynamodb.toDynamoDBJson($ctx.args.id)}}""",
    response_template="$util.toJson($ctx.result)",
)

appsync.Resolver(
    "add-resolver",
    api_id=api.id,
    data_source=data_source.name,
    type="Mutation",
    field="addTenant",
    request_template="""{
        "version" : "2017-02-28",
        "operation" : "PutItem",
        "key" : {
            "id" : $util.dynamodb.toDynamoDBJson($ctx.args.id)
        },
        "attributeValues" : {
            "name": $util.dynamodb.toDynamoDBJson($ctx.args.name)
        }
    }
    """,
    response_template="$util.toJson($ctx.result)",
)

The resolver above maps the GraphQL operations to DynamoDB actions, such as GetItem and PutItem.

2.10: Export API Details

Finally, we export the API endpoint, API key, and API ID so we can use them later.

pulumi.export(OUTPUT_KEY_ENDPOINT, api.uris["GRAPHQL"])
pulumi.export(OUTPUT_KEY_API_KEY, api_key.key)
pulumi.export(OUTPUT_KEY_API_ID, api.id)

return api, api_key, api.uris["GRAPHQL"]

2.11: Update the entry point

Now, let’s update __main__.py to remove the boilerplate code and call our function:

from resource_appsync import create_appsync_api
api, api_key, endpoint = create_appsync_api()

Step 3: Deploy Pulumi stack

Time to bring this thing to life!

We’ll deploy our Pulumi stack, which spins up all our AWS resources inside LocalStack.

3.1: Start LocalStack

Before deploying, make sure LocalStack is up and running:

localstack auth set-token <YOUR_LOCALSTACK_AUTH_TOKEN>
localstack start

3.2: Install pulumilocal

Since we’re using LocalStack, we’ll install pulumilocal to deploy our stack:

pip install pulumilocal

3.3: Select the Pulumi stack

Pulumi organizes deployments into stacks (think: dev, staging, production). We’ll select the localstack stack:

pulumilocal stack select -c localstack

This tells Pulumi: “Use the stack we created earlier.”

3.4: Deploy the stack

Now, let’s deploy all the things: ️‍🌈

pulumilocal up

Pulumi will:

• Ask if you want to overwrite the config file (say yes).
• Preview what it will create. (AppSync API, DynamoDB, IAM roles, resolvers, etc.)
• Deploy everything in the right order.

Example preview:

Previewing update (localstack):
     Type                             Name                         Plan
 +   pulumi:pulumi:Stack              appsync-dynamodb-localstack  create
 +   ├─ aws:iam:Role                  iam-role                     create
 +   ├─ aws:dynamodb:Table            tenants                      create
 +   ├─ aws:appsync:GraphQLApi        key                          create
 +   ├─ aws:appsync:ApiKey            key                          create
 +   ├─ aws:appsync:DataSource        tenants-ds                   create
 +   ├─ aws:iam:RolePolicyAttachment  iam-policy-attachment        create
 +   ├─ aws:iam:Policy                iam-policy                   create
 +   ├─ aws:appsync:Resolver          get-resolver                 create
 +   └─ aws:appsync:Resolver          add-resolver                 create

Outputs:
    api_id  : output<string>
    api_key : output<string>
    endpoint: output<string>

Resources:
    + 10 to create

After confirming, Pulumi deploys everything in seconds:

Outputs:
    api_id  : "ca334cb8d3eb45eb8e25fc0e41"
    api_key : [secret]
    endpoint: "http://localhost.localstack.cloud:4566/graphql/ca334cb8d3eb45eb8e25fc0e41"

Resources:
    + 10 created

Duration: 9s

Now you’ve got a AppSync API running locally!

Step 4: Setup Pulumi integration tests

Now that our infrastructure is in place, let’s test it. 🧪

We’ll use Python’s unittest framework and Pulumi’s Automation API to:

1. Deploy the stack programmatically.
2. Verify that the AppSync API was created.
3. Test adding a tenant via GraphQL.
4. Confirm that the data is stored in DynamoDB.
5. Destroy all resources after testing.

4.1: Create the test file

Create test_appsync.py and import the necessary libraries:

import os
import unittest
import json
import requests
import boto3
import time
from pulumi import automation as auto

from resource_appsync import OUTPUT_KEY_ENDPOINT, OUTPUT_KEY_API_KEY, OUTPUT_KEY_API_ID

4.2: Set Up & Tear Down

We’ll use setUpClass and tearDownClass to handle the deployment lifecycle:

class TestAppSync(unittest.TestCase):
    @classmethod
    def setUpClass(cls) -> None:
        cls.STACK_NAME = "localstack"
        cls.REGION_NAME = "us-east-1"
        cls.WORK_DIR = os.path.join(os.path.dirname(__file__))
        cls.TENANT_ID = "123"
        cls.TENANT_NAME = "FirstCorp"

        # Configure LocalStack clients
        cls.endpoint_url = "http://localhost:4566"
        cls.appsync_client = boto3.client("appsync", region_name=cls.REGION_NAME, endpoint_url=cls.endpoint_url)
        cls.dynamodb_client = boto3.client("dynamodb", region_name=cls.REGION_NAME, endpoint_url=cls.endpoint_url)

        # Deploy the stack
        cls.stack = auto.create_or_select_stack(stack_name=cls.STACK_NAME, work_dir=cls.WORK_DIR)
        cls.stack.up(on_output=print)
        cls.outputs = cls.stack.outputs()

    @classmethod
    def tearDownClass(cls) -> None:
        cls.stack.destroy(on_output=print)
        cls.stack.workspace.remove_stack(cls.STACK_NAME)

How the Automation API works here:

• auto.create_or_select_stack() → Selects or creates a Pulumi stack
• stack.up() → Deploys the infrastructure
• stack.outputs() → Fetches deployed API details
• stack.destroy() → Cleans up resources after testing

4.3: Test the AppSync API Exists

First, we’ll check if the AppSync API was created successfully.

def test_appsync_api_exists(self):
    """Test if the AppSync API was created successfully"""
    api_id = self.outputs.get(OUTPUT_KEY_API_ID).value

    # Get the API using boto3
    response = self.appsync_client.get_graphql_api(apiId=api_id)
    self.assertEqual(response["graphqlApi"]["apiId"], api_id)

4.4: Test AppSync API by adding a tenant

Let’s run a quick API request… because who has time to manually poke endpoints?

We’ll grab the endpoint URL and API key from the stack outputs, then fire off a GraphQL mutation to add a tenant.

def test_graphql_add_tenant(self):
    """Test the GraphQL mutation to add a tenant"""
    endpoint = self.outputs.get(OUTPUT_KEY_ENDPOINT).value
    api_key = self.outputs.get(OUTPUT_KEY_API_KEY).value

    query = {
        "query": f"""
        mutation AddTenant {{
            addTenant(id: "{self.TENANT_ID}", name: "{self.TENANT_NAME}") {{
                id
                name
            }}
        }}
        """
    }

    headers = {"Content-Type": "application/json", "x-api-key": api_key}
    response = requests.post(endpoint, json=query, headers=headers)

    self.assertEqual(response.status_code, 200)

    # Check the response data
    response_data = response.json()
    self.assertIn("data", response_data)
    self.assertIn("addTenant", response_data["data"])
    self.assertEqual(response_data["data"]["addTenant"]["id"], self.TENANT_ID)
    self.assertEqual(response_data["data"]["addTenant"]["name"], self.TENANT_NAME)

This sends a GraphQL mutation and verifies that it returns the expected result.

4.5: Verify data in DynamoDB

Finally, we’ll check if the tenant was actually stored in DynamoDB.

def test_dynamodb_table_contains_data(self):
    """Test that the tenant was actually stored in DynamoDB"""
    self.test_graphql_add_tenant()  # Ensure the tenant exists

    # Find the actual table name
    tables = self.dynamodb_client.list_tables()
    table_name = next((t for t in tables["TableNames"] if "tenants" in t), "tenants")

    response = self.dynamodb_client.get_item(TableName=table_name, Key={"id": {"S": self.TENANT_ID}})

    self.assertIn("Item", response)
    self.assertEqual(response["Item"]["id"]["S"], self.TENANT_ID)
    self.assertEqual(response["Item"]["name"]["S"], self.TENANT_NAME)

4.6: Run the tests

Add this at the bottom of your file:

if __name__ == "__main__":
    unittest.main()

Running this script will:

• Deploy the infrastructure.
• Run the tests.
• Tear everything down after execution.

Step 5: Run Pulumi integration tests

All that setup? Worth it. Time to run our integration tests with Pulumi and LocalStack.

5.1: Reset LocalStack

Start fresh by restarting LocalStack:

localstack restart

This ensures a clean test environment, removing leftover resources.

5.2: Check Pulumi Configuration

If you deployed with pulumilocal, your stack should already be configured for LocalStack. If not, update your Pulumi config (Pulumi.localstack.yaml):

config:
  aws:accessKey: test
  aws:endpoints:
    - dynamodb: http://localhost:4566
    - appsync: http://localhost:4566
    - iam: http://localhost:4566
    - sts: http://localhost:4566
  aws:region: us-east-1
  aws:secretKey: test
  aws:skipCredentialsValidation: "true"

You still need to pass some AWS credentials—but don’t worry, LocalStack isn’t actually verifying them. Go ahead, put in accessKey: test like a rebel. 😎

5.3: Install dependencies

Install the required dependencies for the test script:

pip install boto3 pulumi pulumi-aws requests

5.4: Run the Tests

Execute the test suite:

python -m unittest test_appsync.py

Example output:

Updating (localstack):

+  pulumi:pulumi:Stack appsync-dynamodb-localstack creating (0s)
...
 +  aws:appsync:Resolver add-resolver creating (0s)
 +  aws:appsync:Resolver get-resolver created (0.01s)
 +  aws:appsync:Resolver add-resolver created (0.01s)
 +  pulumi:pulumi:Stack appsync-dynamodb-localstack created (9s)
Outputs:
    api_id  : "2909a32d813c4bd08c6655cc7b"
    api_key : [secret]
    endpoint: "http://localhost.localstack.cloud:4566/graphql/2909a32d813c4bd08c6655cc7b"

Resources:
    + 10 created

Duration: 10s
...

----------------------------------------------------------------------
Ran 3 tests in 17.278s

OK

If you run into any issues, with Pulumi not able to find the resources, consider deleting the .pulumi folder in your project directory. This will reset the state and allow Pulumi to re-create the resources.

Summary

We did it! We built a AppSync API to DynamoDB workflow using Pulumi, deployed it locally with LocalStack, and wrote integration tests using Pulumi’s Automation API. 💪🏻💪🏼💪🏽💪🏾💪🏿

Check out the full code on GitHub.

Now that you’ve seen how Pulumi and LocalStack can revolutionize your integration testing, it’s time to put it into action. Clone the repo, give it a spin, and let us know what you build!

What to try next

• Expand the API with additional queries and mutations.
• Integrate Lambda resolvers for custom business logic.
• Set up CI/CD pipelines to automate infrastructure testing.
